Master Setting Ring Gauges are manufactured according to the IS 3455-1971 standards.

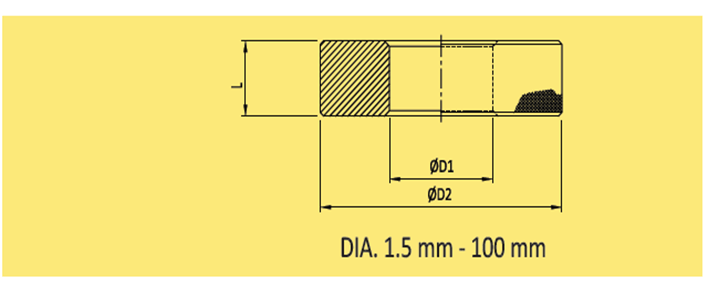

D1 (mm) D2 L
Above Upto
1.5 2.5 22 6
2.5 5 22 10
5.0 10 32 12
10 15 38 14
15 20 45 16
20 25 53 18
25 32 63 20
32 40 71 24
40 50 85 32
50 60 100 32
60 70 112 32
70 80 125 32
80 90 140 32
90 100 160 32

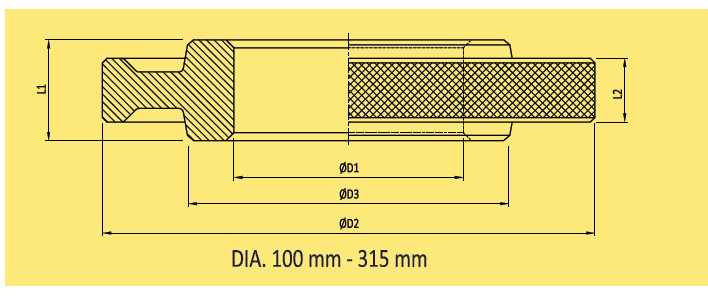

D1 (mm) D2 D3 THICKNESS
Above Upto L1 L2
100.00 110.00 170 132 36 14
110.00 120.00 180 114 36 16
120.00 130.00 190 150 36 16
130.00 140.00 200 160 36 18
140.00 150.00 212 170 36 18
150.00 160.00 224 180 36 20
160.00 170.00 236 190 40 20
170.00 180.00 250 200 40 20
180.00 190.00 265 212 40 22
190.00 200.00 280 224 45 22
200.00 212.00 300 236 45 22
212.00 224.00 315 250 45 25
224.00 236.00 335 265 50 25
236.00 250.00 355 280 50 28
250.00 265.00 375 300 50 28
265.00 280.00 400 315 56 28
280.00 300.00 425 335 56 32
300.00 315.00 450 355 56 32

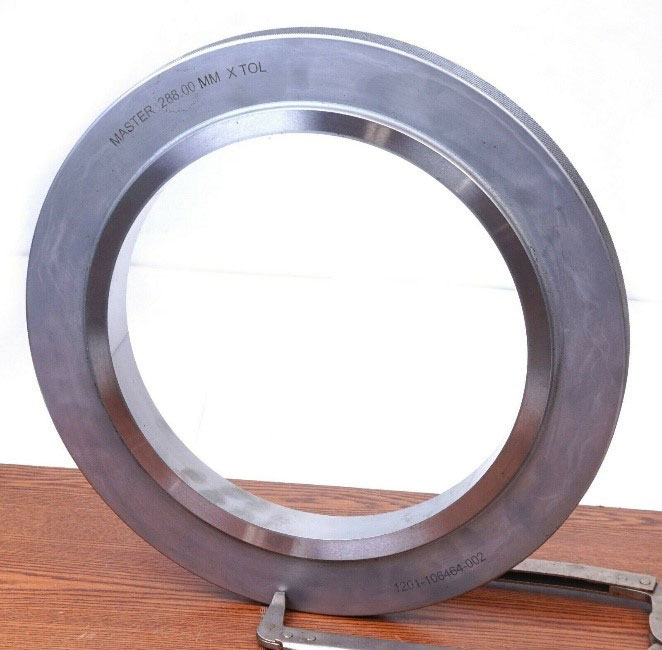

Master Setting Ring Gauges

FEATURES:

  • Master setting ring gauges are used for measuring instruments such as horizontal comparators, dial bore gauges, length measuring machines for ID checking and others.
  • Engineering Supplies manufactures high precision Master Setting Ring gauges from oil hardening and non-shrinking gauge steel.
  • Master setting ring gauges are hardened and tempered to 60-62 HRC and Sub-zero treated at -80 °C for to achieve dimensional stability.
  • Calibrated at under standard room condition of 20 °C to meet national & international standards.
  • Calibration certification with every master meeting national & international standard available on request.
  • NABL certificate (ISO / IEC 17025) is available on request.
  • Blank Design is according to the I.S. 3485-1983 standards and Gauging Practice according to the I.S. 3455-1971 standards.
