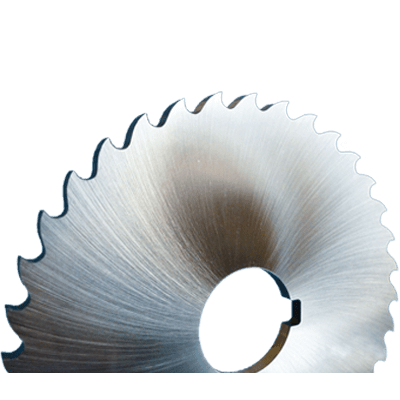

Circular Saw Blade Cutter
Saw Cutter

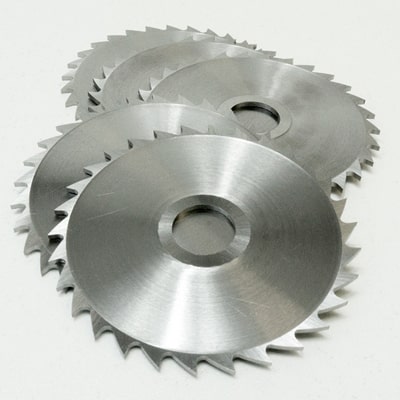

HSS Saw manufactured by us, are of international quality, in the standard range from 40mm Dia to 400mm Dia and thickness 0.2mm to 6mm.
They are suitable for cutting Ferrous, Non-Ferrous Metal as well as Plastic & Composite material.

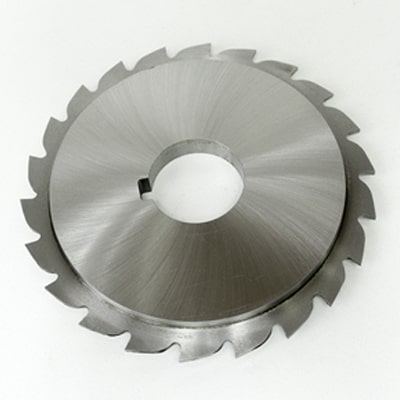

These saw are made with hollow ground with a flange and tooth form A, AW, B, BWC & BR.

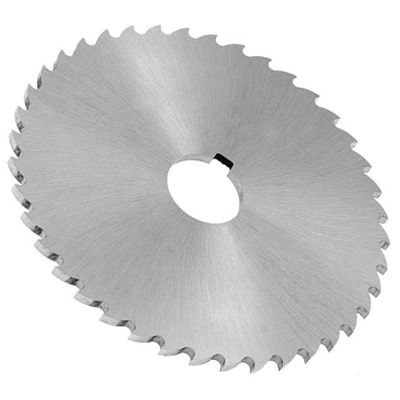

Circular Saw Blade
| A : Straight Tooth |  |
Normal for < 3 mm Pitch |
| AW : Straight Bevel |  |
Variant of above |

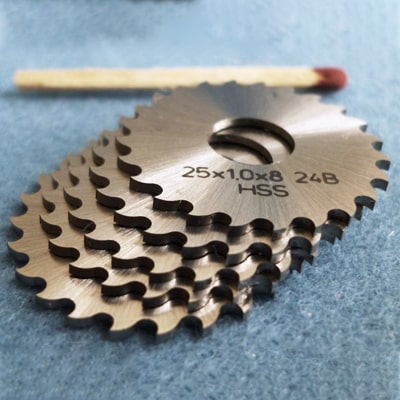

| B : Curved Tooth |  |
Normal for < 3 mm Pitch |

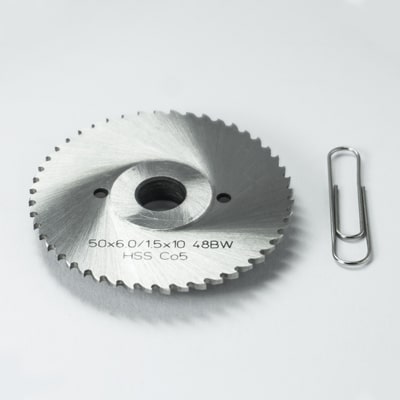

| BW : Curved Tooth |  |
Thin Well Steel Tubes 3 or 4 mm Pitch |
| C : Triple Chip |  |
General Purpose for Steel > 4 mm Pitch |

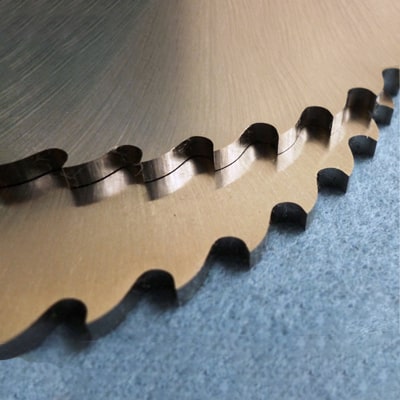

| BR : Chipbreaker |  |
Thin Wall Tubes > 4 mm Pitch TIN Coated, Higher Speeds and Feeds can be used |
| Diameter | THICKNESS / NO. OF TEETH | |||||||||||||||
| (mm) | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 |
| 40 | ||||||||||||||||
| 50 | ||||||||||||||||
| 63 | ||||||||||||||||
| 75 | ||||||||||||||||
| 80 | ||||||||||||||||
| 100 | ||||||||||||||||
| 125 | 0.2 20 / 24 / 26 / 30 /32 / 36 / 38 / 40 / 44 / 48 / 50 / 52 / 60 / 62 / 64 / 70 / 72 / 80 / 88 / 100 / 112 / 124 / 128 / 140 / 150 / 160 / 176 / 200 / 250 | |||||||||||||||
| 160 | ||||||||||||||||
| 200 | ||||||||||||||||
| 250 | ||||||||||||||||
| 300 | ||||||||||||||||
| 350 | ||||||||||||||||
| 400 | ||||||||||||||||

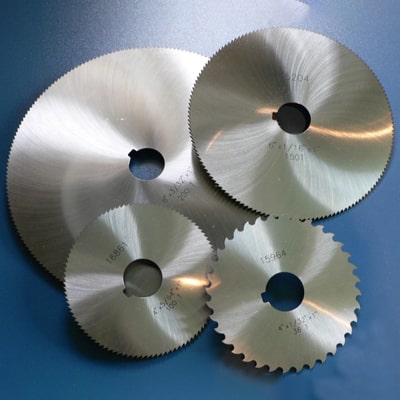

slitting saw cutter
HSS Slitting Saws are manufactured as per IS and DIN, howere we can also manufacturer as per industrial Standards : BIS (G.B.), NFE (France), JIS (Japan), UNI (Italy), ANSI (USA)
We can also manufacture special saw as per customer drg.
We can also supply you SOLID CARBIDE SAW.

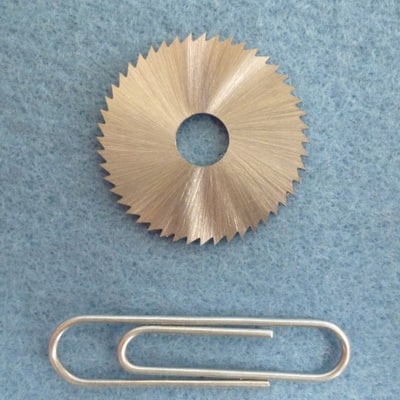

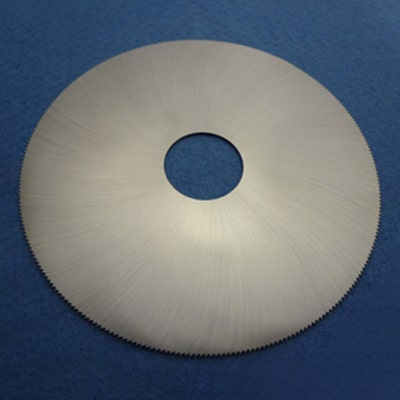

We have specially developed Extra Fine Pitch Slitting Saw Cutter for Jewellery Industry

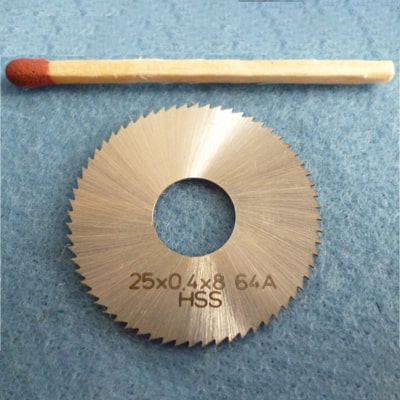

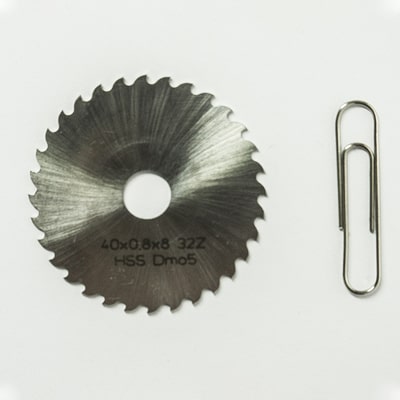

Circular saw blades from material HSS for jewellery production. These saw blades are made with hollow
ground with a flange and tooth form A. Tooth pitch is finer than 1 mm, which enables very precise work.
Photo Gallery
For over a period of 11 years, engaged in Trading and Manufacturing of quality Thread Gauges in India.
-
We are the leading manufacturer of wide range of advanced and high accuracy thread gauges as per customer requirements. Visit our site for more details.
