UNIFIED gauges are manufactured according to the ANSI / ASME B1.2 standards.



Range

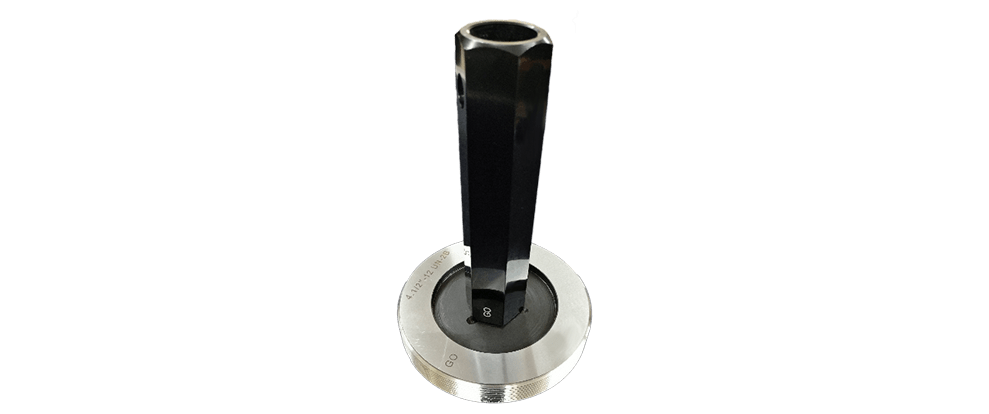

Thread Plugs No. 0 to 8 inch

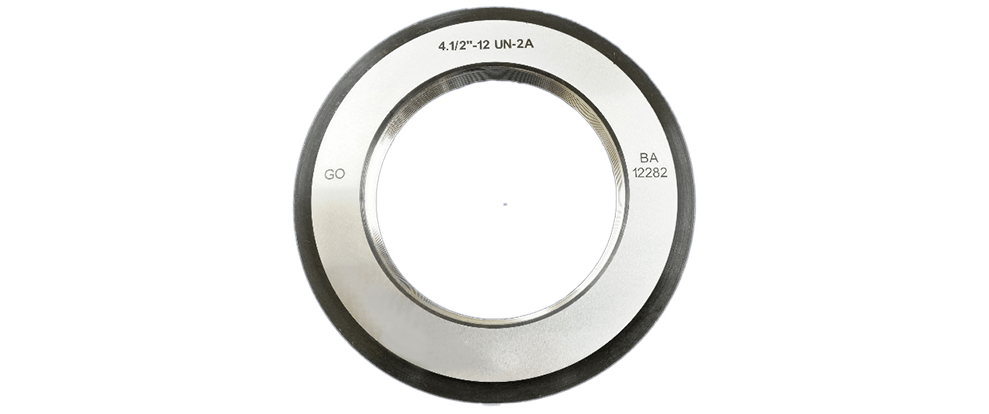

Thread Rings No. 0 to 8 inch
Diameter Pitch Tolerance class Tolerance class
Metric Thread Plug Thread Ring
No. 0 – UNF 80 TPI 2B 2A
1/4 – UNC 20 TPI 2B 2A
1/2 – UNC 13 TPI 2B 2A
1 – UNC 8 TPI 2B 2A

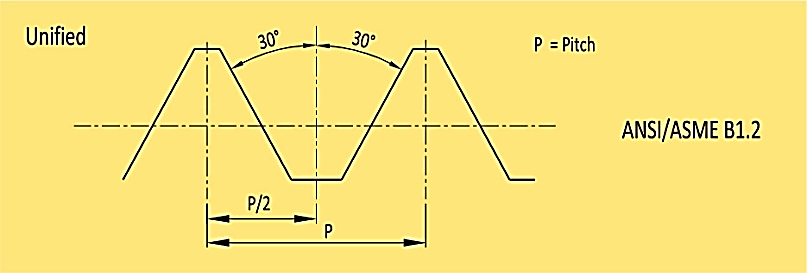

THREAD GAUGE PROFILE


Acceptance Criteria for GO/NOT GO Gauge:

GO Gauge: When the GO gauge enters and passes the complete length of the work piece thread under the condition that it is screwed by hand and does not use excessive force.

NOT GO Gauge: When the NOT GO gauge do not enter the component by more than two turns of the thread from both ends under the condition that it is screwed by hand and does not use excessive force.
